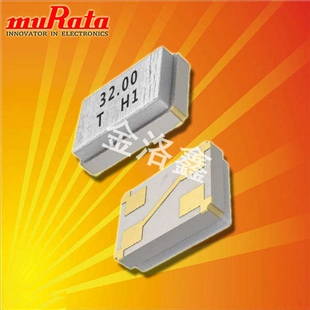

    XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振

  • 規格型號：59411546
  • 頻率：27 MHz
  • 尺寸：2016mm
  • PDF
  • 產品描述：XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振,低相位噪聲特性可減少時鐘信號對射頻模塊的干擾,提升無線通信設備的信號接收靈敏度與傳輸穩定性,避免因信號干擾導致的通信中斷或數據誤碼.


XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振
該晶振采用四腳貼片封裝設計,相較于傳統兩腳貼片晶振,具備顯著的結構與安裝優勢:一是固定穩定性更強,四腳引腳可從四個點位實現與PCB板的焊接固定,有效降低設備振動或溫度變化導致的晶振位移風險,提升長期使用中的結構可靠性,尤其適配汽車電子,工業設備等易受振動影響的場景,二是電路兼容性更優,四腳設計可通過特定引腳布局實現接地或濾波功能(具體需參考產品規格書),減少外部電磁干擾對晶體諧振的影響,提升時鐘信號純凈度,同時,四腳貼片封裝兼容自動化SMT貼片工藝,引腳間距與尺寸公差控制嚴格,能與貼片設備精準匹配,降低貼裝誤差,滿足電子設備批量生產需求,提升組裝效率與產品良率.


XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振
原廠型號 Originalmodel： XRCGB27M000F3N00R0 品牌brand： Murata村田晶振
品牌brand： Murata村田晶振 ESR（等效串聯電阻）Resistance) 150 Ohms
型號名稱 Modelname： XRCGB 溫度OperatingTemperature -20°C~85°C
Type系列： MHz Crystal 腳位Termination： 4pad
頻率 frequency： 27 MHz 封裝類型PackageType： 4-SMD
FrequencyStability頻率穩定度 ±30ppm 高度PackageHeight： 0.70mm
frequencytolerance頻率容差 ±30ppm 最小包裝數MPQ： 3000
Loadcapacitance  負載電容 6pF 包裝Packaging：  TapeandReel

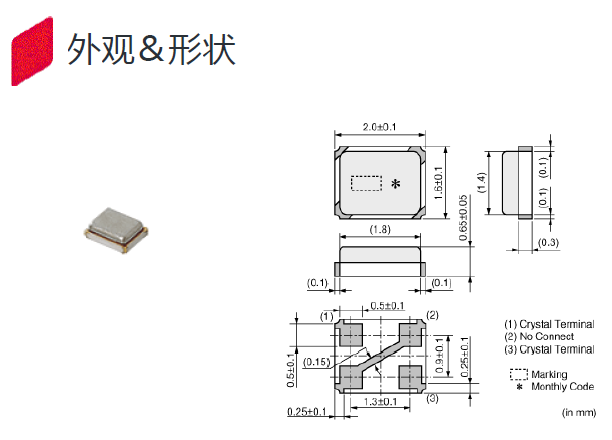

Size/Dimension尺寸 2.00mm x 1.60mm 安裝方式MountingStyle：   SurfaceMount


XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振


XRCGB27M000F3N00R0|四腳貼片晶振|XRCGB無源晶振|日本村田晶振
XRCGB25M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±40ppm ±30ppm 6pF
XRCGB27M120F3M00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F3M00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 6pF
XRCGB32M000F1H01R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 8pF
XRCGB32M000F1H00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±10ppm ±10ppm 6pF
XRCGB25M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±35ppm 6pF
XRCGB24M000F0L00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±50ppm ±100ppm 6pF
XRCGB48M000F4M00R0 Murata村田晶振 XRCGB MHz Crystal 48 MHz ±40ppm ±45ppm 6pF
XRCGB24M000F3N00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±30ppm ±30ppm 6pF
XRCGB27M120F3M10R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF
XRCGB25M000F3M18R0 Murata村田晶振 - MHz Crystal 25 MHz ±40ppm ±30ppm 12pF
XRCGB32M000F2P01R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 8pF
XRCGB32M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF
XRCGB25M000F2P02R0 Murata村田晶振 - MHz Crystal 25 MHz ±20ppm ±20ppm 10pF
XRCGB27M120F2P00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±20ppm ±20ppm 6pF
XRCGB25M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±20ppm ±20ppm 6pF
XRCGB24M000F2P01R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±20ppm 8pF
XRCGB27M120F3M13R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±40ppm ±30ppm 10pF
XRCGB32M000F2P2CR0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 8pF
XRCGB32M000FBH50R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±15ppm 10pF
XRCGB24M000F2P91R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±20ppm ±20ppm 8pF
XRCGB16M000FXN00R0 Murata村田晶振 - MHz Crystal 16 MHz ±40ppm ±40ppm 6pF
XRCGB32M000F1H02R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 10pF
XRCGB32M000F1H19R0 Murata村田晶振 - MHz Crystal 32 MHz ±10ppm ±10ppm 6pF
XRCGB40M000F5A00R0 Murata村田晶振 - MHz Crystal 40 MHz ±65ppm ±50ppm 6pF
XRCGB24M000F3A00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±30ppm 6pF
XRCGB27M120F3A00R0 Murata村田晶振 XRCGB MHz Crystal 27.12 MHz ±35ppm ±30ppm 6pF
XRCGB25M000F3A01R0 Murata村田晶振 XRCGB MHz Crystal 25 MHz ±35ppm ±30ppm 8pF
XRCGB48M000F5A00R0 Murata村田晶振 - MHz Crystal 48 MHz ±65ppm ±50ppm 6pF
XRCGE25M000FBA1AR0 Murata村田晶振 XRCFD MHz Crystal 25 MHz ±35ppm ±15ppm 6pF
XRCHA20M000F0A01R0 Murata村田晶振 XRCHA MHz Crystal 20 MHz ±100ppm ±100ppm 8pF
XRCGB27M120F0L00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±100ppm 6pF
XRCGB32M000F0L00R0 Murata村田晶振 - MHz Crystal 32 MHz ±50ppm ±100ppm 6pF
XRCGB24M000FAN00R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±25ppm 6pF
XRCGB38M400F4M00R0 Murata村田晶振 - MHz Crystal 38.4 MHz ±40ppm ±45ppm 6pF
XRCGB50M000F4M00R0 Murata村田晶振 - MHz Crystal 50 MHz ±40ppm ±45ppm 6pF
XRCGB32M000F3M00R0 Murata村田晶振 - MHz Crystal 32 MHz ±40ppm ±30ppm 6pF
XRCGB24M000F3M13R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±40ppm ±30ppm 6pF
XRCGB32M000F2P02R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 10pF
XRCGB30M000F2P00R0 Murata村田晶振 XRCGB MHz Crystal 30 MHz ±20ppm ±20ppm 6pF
XRCGB27M120F2P02R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±20ppm 10pF
XRCGB32M000F2P26R0 Murata村田晶振 - MHz Crystal 32 MHz ±20ppm ±20ppm 5pF
XRCGB31M250F2P00R0 Murata村田晶振 XRCGB MHz Crystal 31.25 MHz ±20ppm ±20ppm 6pF
XRCGB27M120F3G00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±50ppm ±30ppm 6pF
XRCGB16M000FXN22R0 Murata村田晶振 XRCGB MHz Crystal 16 MHz ±40ppm ±40ppm 8pF
XRCGB27M600F2C00R0 Murata村田晶振 - MHz Crystal 27.6 MHz ±20ppm ±20ppm 6pF
XRCGB24M000F1H01R0 Murata村田晶振 - MHz Crystal 24 MHz ±10ppm ±10ppm 8pF
XRCGB26M000F1H02R0 Murata村田晶振 - MHz Crystal 26 MHz ±10ppm ±10ppm 10pF
XRCGB24M000F1H70R0 Murata村田晶振 - MHz Crystal 24 MHz ±20ppm ±10ppm 6pF
XRCGB32M000F1H83R0 Murata村田晶振 - MHz Crystal 32 MHz ±15ppm ±10ppm 9pF
XRCGE27M000FBA1AR0 Murata村田晶振 XRCGE MHz Crystal 27 MHz ±35ppm ±15ppm 6pF
XRCGB26M000F3A00R0 Murata村田晶振 - MHz Crystal 26 MHz ±35ppm ±30ppm 6pF
XRCGE26M000FBA1BR0 Murata村田晶振 XRCGE MHz Crystal 26 MHz ±35ppm ±15ppm 8pF
XRCGE20M000F3A1AR0 Murata村田晶振 XRCFD MHz Crystal 20 MHz ±45ppm ±30ppm 6pF
XRCGB24M000F2A01R0 Murata村田晶振 XRCGB MHz Crystal 24 MHz ±35ppm ±20ppm 8pF
XRCGB27M120F3P00R0 Murata村田晶振 - MHz Crystal 27.12 MHz ±20ppm ±30ppm 6pF
XRCGB32M000F2P55R0 Murata村田晶振 XRCGB MHz Crystal 32 MHz ±20ppm ±20ppm 6pF
XRCPB26M000F2P00R0 Murata村田晶振 XRCPB MHz Crystal 26 MHz ±20ppm ±20ppm 6pF
XRCGB32M000F1H18R0 Murata村田晶振 XRCFD MHz Crystal 32 MHz ±15ppm ±10ppm 9pF
